Liners

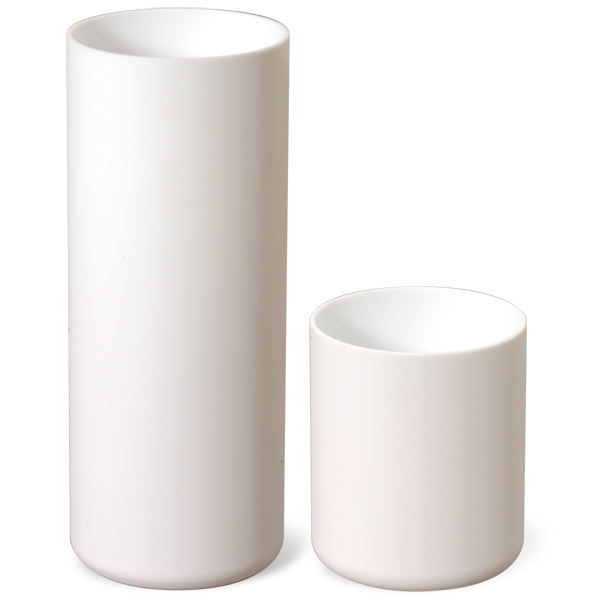

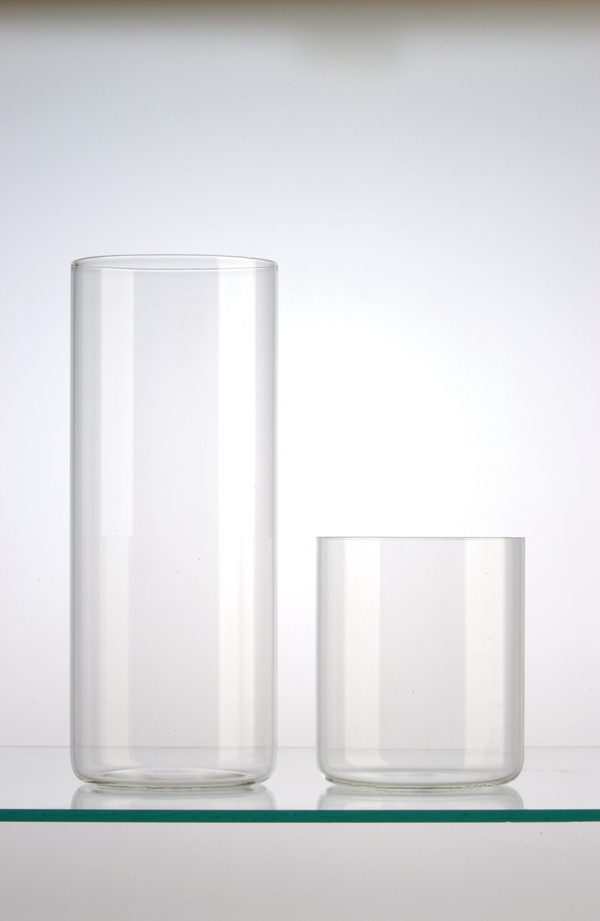

Removable, open top, cylindrical liners made either of borosilicate glass or PTFE can be furnished to fit most Parr reactors and general purpose vessels. These liners slide into the cylinder and require no additional fittings, but they may not coordinate with some alternate accessories and stirrers. Although they will not keep corrosive vapors from reaching the surfaces of the cylinder and head, they make it much easier to add and remove liquid reactants, and they give some protection to the cylinder when working with corrosive solutions. It must be noted, however, that adding a PTFE liner will slow the heat transfer rate into and out of the vessel, and it may be necessary to adjust the temperature control method to prevent overheating.

Liners
Fits ID, inFits Cylinder Size, mLGlass Liner Part No.PTFE Liner Part No.
1.3501431HC1431HCHA
1.31001431HC21431HC2HA
1.51252920HC22920HC4HA
1.52002920HC32920HC3HA
1.5752920HC2920HC2HA
2-1/2250762HC10NA
2-1/2500762HC2762HCHHA
2-1/2300762HC762HC4HA
2-1/2450762HC2762HC5HA
2-1/2600762HC3762HC6HA
2100762HC7762HC7HA
2-1/2160762HC8762HC8HA
3-1/46002312HC2312HC3HA
3-1/412002312HC22312HC4
3-3/410001441HC1441HCHA
3-3/418001442HC1442HCHA
41000398HC398HCHA
42000399HC399HCHA
61 Gallon894HC894HC4HA
62 Gallon894HC2894HC5HA

We'll help you configure a system that meets all of your research needs.
